Image Recognition Python: Building a Comprehensive System Guide

Image recognition enables computers to recognize objects, shapes, and textures in images. This technology is used in healthcare, security, e-commerce, and autonomous vehicles, among other applications. It has become an essential part of modern technology due to the advances made in AI and machine learning (ML).

Python is the most popular language for image recognition because it is easy to learn, versatile, and has numerous libraries for implementing ML and DL algorithms. Object detection and image classification are supported by TensorFlow, PyTorch, and OpenCV. And NumPy and Matplotlib are used for processing and visualization, respectively, of the data. The efficiency of creating recognition systems is also improved by pre-trained models and deep CNNs.

In this article, we will learn the basics of how image recognition works, the main Python libraries that are used in this process, and how to actually build a model for image recognition.

What is image recognition?

Image recognition is a sub branch of pattern recognition, and is also a case of unsupervised learning. It is the process of enabling machines to identify, characterize, and classify different kinds of objects within given images. It is used in various applications such as face detection, medical diagnosis, auto driving cars, security systems, etc. Thus, with the help of techniques such as AI (Artificial Intelligence) and ML (Machine Learning), image recognition systems can work similarly to human vision and give on-the-spot decisions.

Key Python libraries for image recognition

The different modules that are readily available make Python popular for building the image recognition models. Some of the most popular libraries include:

TensorFlow: It is an open source library developed by Google and is commonly used for training image recognition models. It employs CNNs (Convolutional Neural Networks) and transfer learning to enhance the accuracy of the models.

PyTorch: It is developed by Facebook and is characterized by a flexible tensor computation graph that assists in the construction and tuning of deep learning models for tasks like image classification and object detection.

OpenCV: OpenCV is a prominent open source library for the integration of computer vision functionalities like image processing, feature extraction, and object detection which are necessary for real-time applications.

Keras: Keras is an API on top of TensorFlow, which offers a higher level and more concise and abstracted interface for building deep learning models, including image classification models.

These libraries, along with the flexibility of Python, enable developers to create image recognition systems that can be used in various parts of life.

Setting up your Python environment

Before building an image recognition system in Python, you need to set up your development environment with the necessary tools and libraries. This section will guide you through the essential software and installation steps to get started.

Software and tools required

To develop an image recognition system in Python, you need the following:

Python (3.x) – The dominant programming language for the development of image recognition models.

Jupyter Notebook or IDE (e.g., VS Code, PyCharm) – A coding environment for writing and running Python scripts.

Machine Learning Libraries – The frameworks chosen for building and training models are TensorFlow, PyTorch, Keras, and OpenCV.

NumPy and Matplotlib – These are very useful libraries for data handling, visualization, and preprocessing images, respectively.

PIP (Python Package Installer) – This makes it easier to install dependencies.

Installing Python and relevant libraries

Follow these steps to set up your environment:

1. Install Python

Download and install the latest version of Python from the official website: Python.org. Make sure to check the box for “Add Python to PATH” during installation.

2. Install Required Libraries

Once Python is installed, open a terminal or command prompt and run the following commands to install the necessary libraries:

pip install numpy matplotlib tensorflow keras torch torchvision opencv-python

• NumPy & Matplotlib – Used for handling numerical data and visualizing images.
• TensorFlow & Keras – Used for building and training deep learning models.
• PyTorch & Torchvision – Alternative deep learning framework for model development.
• OpenCV – Used for image processing and feature extraction.

Note: Python 3.11.x and above versions might not support these libraries. If your current Python version does not support these libraries, you can install Python 3.10.x and run the above command. You can use a virtual environment to install Python 3.10.x for this project while having the latest version for the other projects.

Learn how to install packages in a virtual environment using pip and venv.

3. Verify Installation

To ensure everything is installed correctly, open a Python shell or Jupyter Notebook and run:

import tensorflow as tf

import torch

import cv2

import numpy as np

import matplotlib.pyplot as plt

print(“All libraries installed successfully!”)

If no errors appear, your environment is set up and ready to build an image recognition system in Python.

Exploring image recognition techniques

Image recognition is built on the grounds of machine learning (ML) and deep learning (DL) to identify and categorize images. ML models, however, require we extract features manually, while DL models such as Convolutional Neural Networks (CNNs) learn features for themselves for complex tasks.

Machine learning vs. deep learning

Let’s see the difference between machine learning and deep learning.

Machine learning (ML): Uses algorithms like Support Vector Machines (SVMs) and k-Nearest Neighbors (k-NN) that classify images based on features we define. It is suitable for simpler tasks but has limited accuracy.

Deep learning (DL): CNNs are employed to learn the features from the data and have produced better results in object recognition, facial recognition, medical imaging, and object detection tasks.

Popular image recognition algorithms

CNNs: The most popular architecture for object detection and image classification.

Transfer Learning: It means fine-tuning of pre-trained models like VGG16 and ResNet for faster training.

YOLO (You Only Look Once): Effective for real-time object detection.

R-CNNs: Detect multiple objects within an image, enhancing the accuracy.

For many simple tasks, ML models are adequate, but for large-scale and high-accuracy tasks, deep learning-based CNNs are the go-to choice.

Step-by-step guide to building your first image recognition model

Developing an image recognition model entails data collection, image preprocessing, model training using deep learning, and model evaluation. Here are the steps that will be described in detail in this paper using Python and TensorFlow.

1. Data collection and preprocessing

The first step in designing an image recognition application is to get and get ready a dataset. You can use other people’s datasets, for example, ImageNet, CIFAR-10 or MNIST, or use your own images for the training set.

Steps to prepare data:

Collect Images – Make sure that the images you select are taken in different angles, different lighting conditions, and with different variations.

Label the data – Put the images into categories (For example, for a classification task, “Cats” and “Dogs”.

Resize and normalize – Convert all images to the same size (For example: 224×224 pixels) and normalize the pixel values (Between 0 and 1).

Data augmentation – The process of rotating, flipping, and zooming images to increase the size of the dataset and increase the accuracy of the model.

Using TensorFlow’s Keras API, you can load and preprocess images:

import tensorflow as tf

from tensorflow.keras.preprocessing.image import ImageDataGenerator

datagen = ImageDataGenerator(rescale=1./255, rotation_range=20, horizontal_flip=True)

train_data = datagen.flow_from_directory("dataset/train", target_size=(224, 224), batch_size=32, class_mode="categorical")

2. Training the model with Python

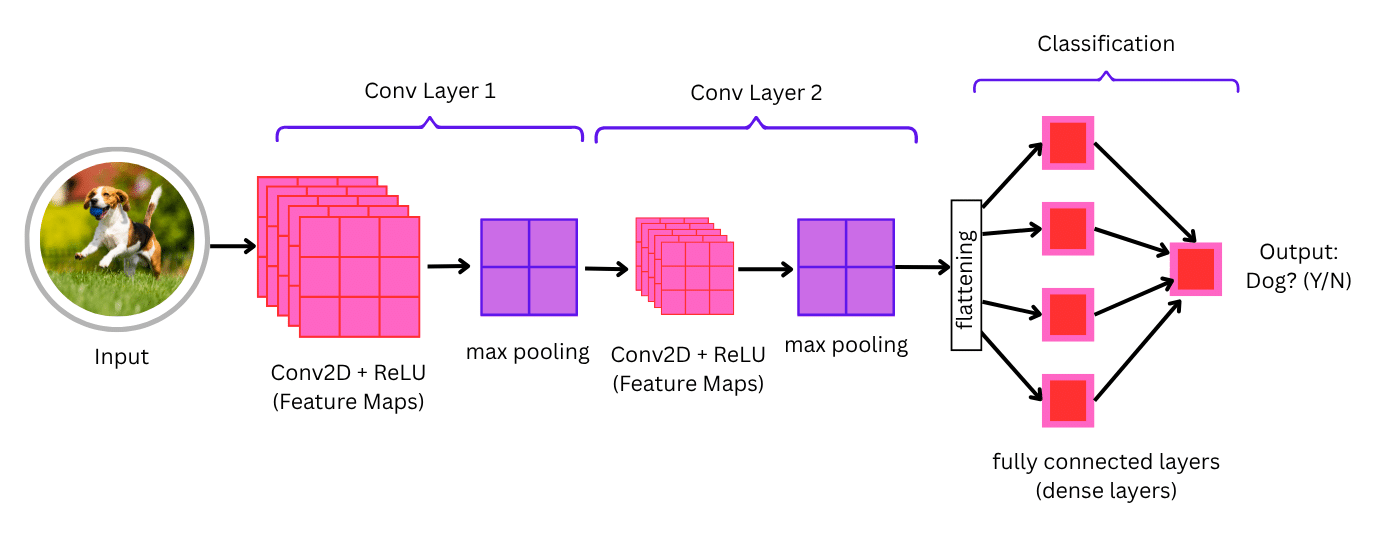

When the data is ready, we can create a model that can recognize images using a Convolutional Neural Network (CNN).

Steps to train a model:

Design the CNN architecture – Convolutional, pooling, and fully connected layers are combined.

Compile the model – Determine the optimizer, the loss function and the evaluation metrics.

Train the model – Use the training dataset for learning the weights of the model.

Here is the code that can help you create and train a simple CNN using TensorFlow:

from tensorflow.keras.models import Sequential

from tensorflow.keras.layers import Conv2D, MaxPooling2D, Flatten, Dense

model = Sequential([

    Conv2D(32, (3,3), activation='relu', input_shape=(224, 224, 3)),

    MaxPooling2D(2,2),

    Conv2D(64, (3,3), activation='relu'),

    MaxPooling2D(2,2),

    Flatten(),

    Dense(128, activation='relu'),

    Dense(2, activation='softmax')  # Adjust for the number of classes

])


model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])


model.fit(train_data, epochs=10)

3. Coding walkthrough using TensorFlow

Once you have trained the model, you need to see how it performs on images that it has not seen before. The following code can be used to evaluate accuracy and make predictions:

import numpy as np

from tensorflow.keras.preprocessing import image

# Load an image for testing

img = image.load_img("dataset/test/cat1.jpg", target_size=(224, 224))

img_array = image.img_to_array(img) / 255.0

img_array = np.expand_dims(img_array, axis=0)


# Make a prediction

prediction = model.predict(img_array)

class_index = np.argmax(prediction)


print(f"Predicted class: {class_index}")

This will help you create a simple image recognition model in Python using TensorFlow. You can enhance the accuracy by employing a larger number of samples, transfer learning, or optimizing the hyperparameters.

Testing and improving your model

When you have trained your image recognition model, you first have to check how well it performs and enhance it for higher accuracy. This section will also assist you in how to employ the model in real life, how to test its reliability, and how to enhance its efficiency so that it can be applied effectively in real life applications.

How to evaluate the accuracy of your model

To assess the effectiveness of your model, you can evaluate it on a test dataset that the model has not seen before. The key evaluation metrics include:

• Accuracy: The percentage of correctly classified images.
• Precision & Recall: Measures how well the model distinguishes between different classes.
• Confusion Matrix: A table showing correct and incorrect predictions for each class.

Evaluating model performance in Python

Use TensorFlow to evaluate the model on a test dataset:

test_loss, test_acc = model.evaluate(test_data)

print(f"Test Accuracy: {test_acc:.2f}")

To generate a confusion matrix, use Scikit-learn:

import numpy as np

from sklearn.metrics import confusion_matrix


y_true = test_data.classes

y_pred = np.argmax(model.predict(test_data), axis=1)


cm = confusion_matrix(y_true, y_pred)

print(cm)

Tips for improving model performance

If the accuracy of your model is low, you should consider the following optimization techniques:

• Increase Dataset Size: It also helps to have more training images because it improves model generalization.
• Data Augmentation: We flip, rotate, zoom, and crop the training images to include varying possibilities.
• Use Transfer Learning: It means that you can use the preprocessed data and start with the model that was already trained on similar tasks (e.g., VGG16, ResNet or  MobileNet) to achieve better accuracy with fewer images.
• Hyperparameter Tuning: This is the process of adjusting the learning rate, batch size, and the depth of the network to enhance the performance.
• Reduce Overfitting: We also turn to dropout layers or L2 regularization to tell the model not to learn the details of the training data but rather to learn the general pattern.

Example code for model testing

To test the model on a single image, use the following Python script:

import numpy as np

from tensorflow.keras.preprocessing import image


# Load and preprocess a test image

img = image.load_img("dataset/test/dog.jpg", target_size=(224, 224))

img_array = image.img_to_array(img) / 255.0

img_array = np.expand_dims(img_array, axis=0)


# Predict the class

prediction = model.predict(img_array)

class_index = np.argmax(prediction)


# Class labels (adjust based on your dataset)

class_labels = ["Cat", "Dog"]

print(f"Predicted Class: {class_labels[class_index]}")

Conclusion

In this article, we have discussed the basics of image recognition in Python, including the basics of the concepts, creation, testing, and enhancement of a deep learning model. We discussed the primary Python libraries, the distinctions between the machine learning and deep learning approaches, and a step-by-step guide on how to develop an image recognition system using TensorFlow.

Continuous learning and experimentation are necessary to build good image recognition models. Retraining your dataset, performing transfer learning, and adjusting model parameters can improve performance and address more complex recognition challenges. Stay curious, keep trying, and never stop questioning what is possible in computer vision and AI!
